Product Details:
Payment & Shipping Terms:
|
| Application: | Excavator | Feature: | Professional |
|---|---|---|---|
| JAW Number: | Multi-Jaw | Materials: | Alloy Steel |
| Name: | Excavator Grab | Ropr Number: | Four Rope |
| Highlight: | excavator grab bucket |
||

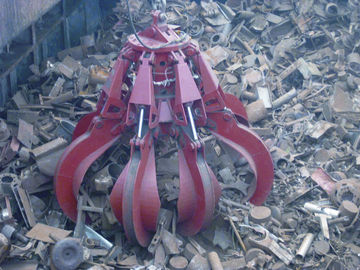

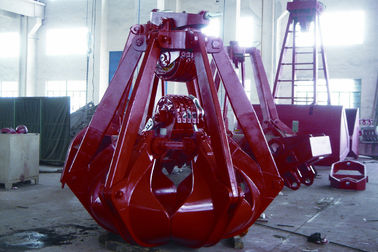

Four-Rope Excavator Grab
Quick Detail:
Our engineer took extreme working conditions and high occupancy degree of the installation into account. This kind of the clamshell grab combines a favorable distribution of forces in the construction with the advantages of easy operation and high efficiency. Our cactus grabs have standout their excellent digging and filling capabilities, extremely short cycle times, long life expectancy and very low maintenance costs.
Balanced design
Good price, quick delivery time
Extremely short withdraw length
Description:
CMEC is a professional manufacturer in Standard or Custom OEM Machinery & Metal Work manufacturing.
Why choose us:
Our company owns 26 affiliates in china, operates 13 affiliates overseas and 26 foreign representative offices.
Professional on-site guidance
Timely service and progress
Quality control to ensure the product quality
Specification
|
Crane load |
5t |
10t |
16t |
25t |
32t |
40t |
|||||||
|
Density(t/m3) |
0.6-0.8 |
0.9-1.0 |
2.5-3.2 |
0.6-0.8 |
0.9-1.0 |
2.5-3.2 |
0.6-0.8 |
0.9-1.0 |
2.5-3.2 |
2.5-3.2 |
2.5-3.2 |
2.5-3.2 |
|
|
Bucket(m3) |
3 |
2.8 |
1.2 |
6.0 |
4.5 |
2 |
10 |
8 |
4 |
5.6 |
6.0 |
8 |
|
|
weight(kg) |
3200 |
3200 |
2000 |
5700 |
5400 |
5000 |
8000 |
8000 |
6500 |
11000 |
14500 |
17000 |
|
|
Sheave diameter(mm) |
φ315 |
φ315 |
φ315 |
φ450 |
φ450 |
φ450 |
φ560 |
φ560 |
φ560 |
φ630 |
φ800 |
φ900 |
|
|
Rate |
3 |
3or4 |
4 or 5 |
3 |
3 or 4 |
4 or 5 |
3 |
3 or 4 |
4 or 5 |
4 or 5 |
4 or 5 |
4 or 5 |
|
|
Closed rope diameter |
φ16-18 |
φ16-18 |
φ16-18 |
φ22-24 |
φ22-24 |
φ22-24 |
φ28 |
φ28 |
φ28 |
φ32 |
φ36-40 |
φ40-44 |
|
|
Dimension |
A |
2800 |
2600 |
3500 |
3500 |
2950 |
2700 |
3700 |
3500 |
3350 |
3650 |
3820 |
4200 |
|
B |
3500 |
3000 |
4700 |
4700 |
4100 |
3300 |
5000 |
4800 |
4300 |
4650 |
5000 |
5520 |
|
|
C |
2700 |
2600 |
3500 |
3500 |
3400 |
3300 |
3800 |
3700 |
3580 |
4000 |
4200 |
4650 |
|
|
D |
3200 |
3000 |
4700 |
4700 |
4200 |
3900 |
4700 |
4500 |
4360 |
4900 |
5200 |
5800 |
|
Applications:
The cactus grab is very suitable for handling (sticky) coal and ore, minerals, biomass, concentrates and bauxite. Specifically suited for use with automated gantry crane
Competitive Advantage:
Good quality, high technology and fine management are our company’s core competitive power.
The cactus grab has the highest average productivity and is known for its stability on sloping surfaces. It has excellent cleaning-up capabilities, very good digging and filling specifications and extremely short cycle times. The robust design guarantees long life expectancy and low maintenance costs.
